Water Immersion Retort Sterilizer for Aluminum Pouch Meat Sterilization
Fast shipping

Water Immersion Retort Sterilizer for Aluminum Pouch Meat Sterilization

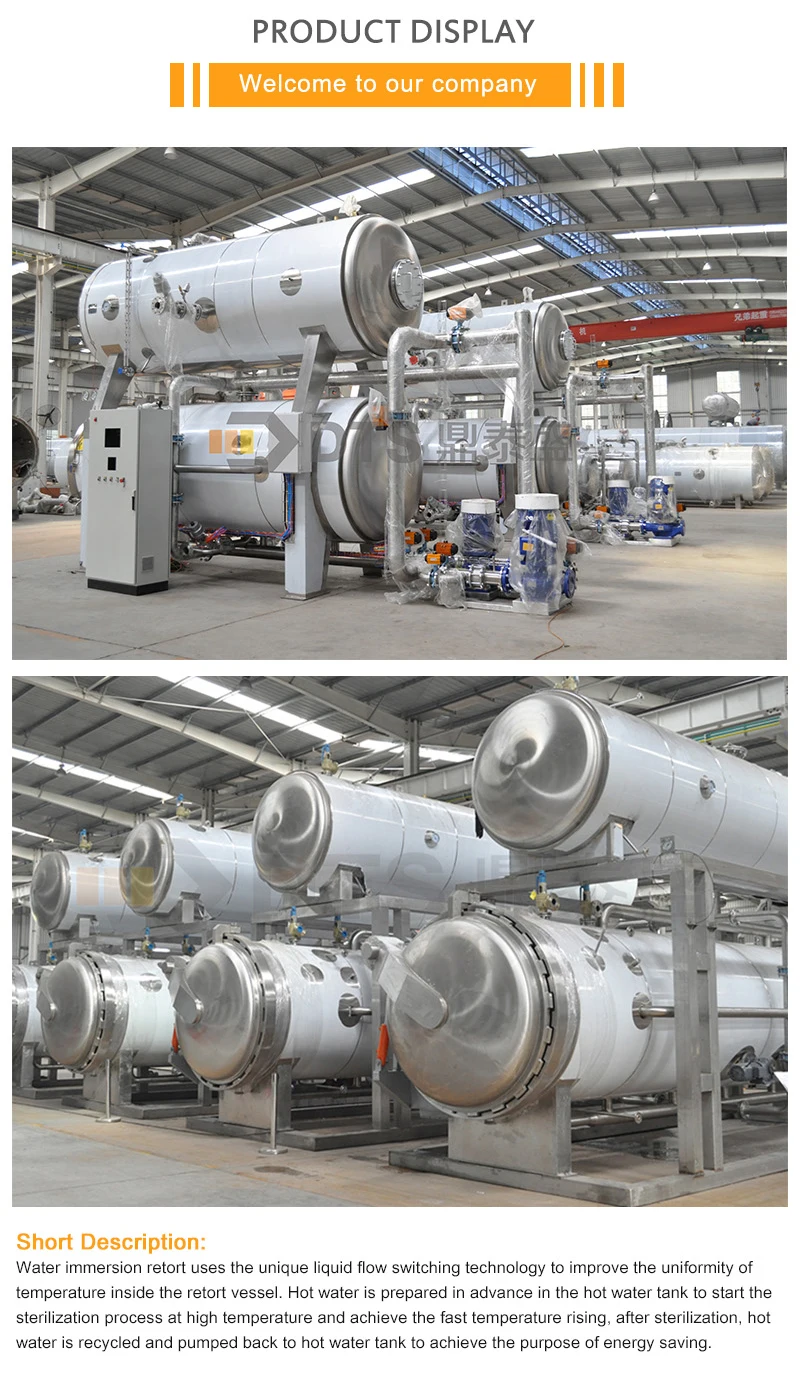

Water immersion retort is used for food to extend the food shelf life.
Loading Port:Qingdao
Min. Order:
FOB Unit Price:
Page view:
Order quantity:
Inquiry volume:
1+Set US $ 31080.00 46436 0 22002
Est. Profit US $ -1480.00 | B2C retail price US $ 29600.00/Set
Size US $ 31080.00 Stock: 90000
- +
0 Item|Price: US $ 0.00
Shipping Cost: Contact the supplier to confirm the freight(only air freight)
Payment:
Seller suport:
Payment protection
Product quality protection
Ships within 48 hours
Product InformationCompany Profile
Basic specification
Heating way:
Steam Boiler
Usage:
Extend Food Shelf Life
Keyword:
Sterilization Retort Pouch Reto...
Design Temperature:
147 Degree Centigrade
Control system:
PLC
Brand name:
DTS
Material:
Stainless Steel SUS304
Function:
Sterilization
Item No:
J-104
Product name:
Retort Sterilizer for Aluminum ...
Sterilizing way:
Boiler steam
Medium:
Water and Steam
Package:
Wooden Case
Packaging
Gross weight:1000.0 kg
CTN size:350.0cm*200.0cm*320.0cm
20 GP Container
Product Details

2_012_02

Advantages

Uniform water flow distribution
By switching the water flow direction in the retort vessel, uniform water flow is achieved at any position in the vertical and horizontal directions. An ideal system for dispersing water to the center of each product tray to achieve uniform sterilization without dead ends.

High temperature short time treatment
High temperature short time sterilization can be performed by heating hot water in a hot water tank in advance and heating from high temperature to sterilize.

Suitable for easily deformed containers
Because water has buoyancy, it can form a very good protective effect on the container under high temperature state.
Suitable for handling large packaging canned food
It is difficult to heat and sterilize the central part of large canned food in a short time by using a stationary retort,
especially for food with high viscosity.
By rotating, the high viscosity food can be evenly heated to the center in a short time, and achieve effective sterilization
effect. The buoyancy of the water at high temperature also plays a role in protecting the product packaging during the rotating process.

Product Application

 2_05

Detailed Images



Model Diameter(mm)

Body Length

(mm)

Volume(m³) Length(mm) Width(mm) Height(mm)

Basket size

(L*W*Hmm)

J-1003 1000 2400 2.12 4000 1700 2900 758*650*621
J-1204 1200 3600 4.47 5400 2100 3350 860*800*775
J-1404 1400 3900 6.62 6050 2500 3900 920*920*915
J-1505 1500 5300 10.12 7700 2600 4450 1000*1000*975

2_03

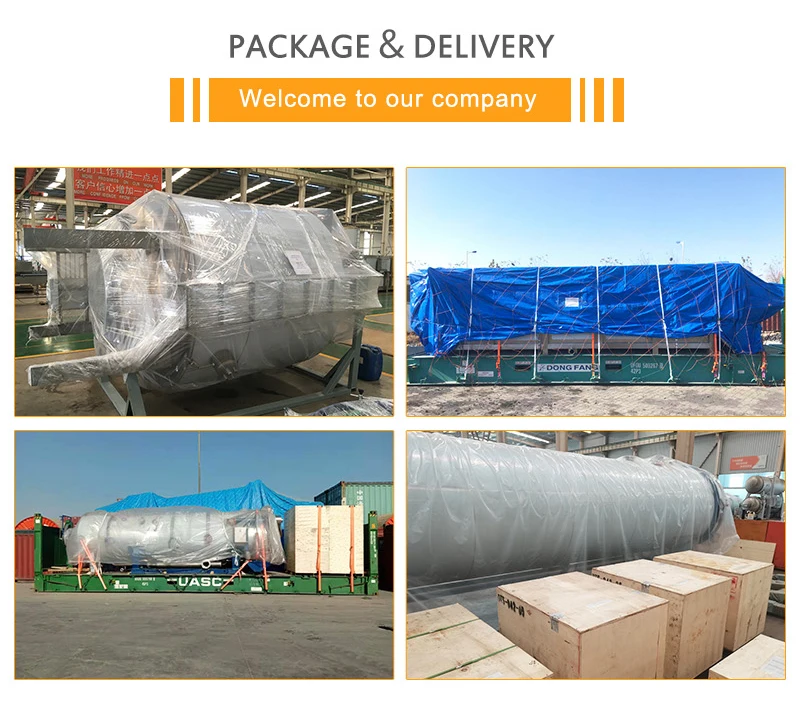

Packaging & Shipping

 2_09

Company Information

 2_08

Why Choose Us

 6_11

FAQ

 1_11Q: What methods of payment are acceptable?

A: FOB, CFR & CIF optional; It’s mainly depend on client’s requirement; Accepted payment types: T/T, L/C;
Q: What can you buy from us?
A: Water spray retort, immersion retort, steam retort, steam and air retort, rotary retort, lab retort, tunnel pasteurizing and cooling machine
Q: Do you have any warranty about your equipment?
A: One year warranty. Frankly speaking, the quality of our machines is very stable. The machine will be tested many times before leaving the factory to ensure that when the machine arrives at your address, it is in the best condition. We also put in a set of spare parts that are prepared in advance from the machine's toolbox. During use, if you need any spare parts or have any questions, you can call us at any time.
Q: What’s the lead time after placing order?
A: Usually it takes about 2-3 months after we received your deposit. However, it would depend on our production line schedule (the timing clients place order) and the complication of the item.
Q: What is the cost of shipping?
A: Shipping cost is based on the following elements:
1.Type of container needed
2. Number of packages
3. Gross weight
4. Package volume
5. Destination port
Q: What is the installation and training methods?
A: Our engineer will inspect and guide the installation of the equipment and the connection of the pipeline on site until the equipment is running smoothly.
